The 78M09 (7809) is a 9V fixed-output voltage regulator IC, designed to provide a stable and reliable 9V power supply for a wide range of electronic applications. Housed in a compact SMD TO-252/DPAK package, it is ideal for space-constrained designs while maintaining efficient voltage regulation. Capable of delivering an output current of up to 500mA, the 78M09 ensures steady performance with a low dropout voltage, making it suitable for use in systems requiring consistent power without significant voltage loss. This makes it a reliable choice for powering sensitive electronic circuits.
Electronic Components, Integrated Circuits, Linear voltage regulator IC

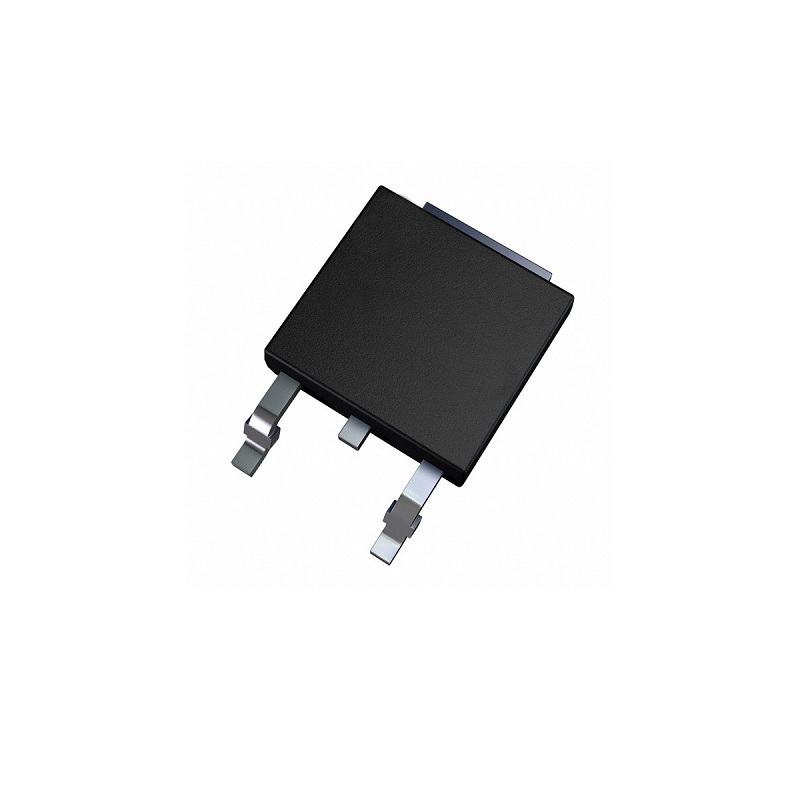

L78M09 IC – (SMD TO-252/DPAK Package) – 9V Positive Voltage Regulator IC
- Output Voltage: Fixed 9V for reliable power supply in electronic applications.
- Current Output: Capable of delivering up to 500mA of output current.
- Package: Compact SMD TO-252/DPAK for space-efficient designs.
- Low Dropout Voltage: Ensures stable performance with minimal voltage loss.
₹21.00
WishlistBased on 0 reviews
Be the first to review “L78M09 IC – (SMD TO-252/DPAK Package) – 9V Positive Voltage Regulator IC”
