Type: Schottky Barrier Rectifier Diode
Average Forward Current: 1A
Reverse Voltage: 40V (VR)
Forward Voltage Drop: 0.5V (typ. at 1A)
Package: DO-214AC (SMA) SMD
Fast Recovery, Low Loss
RoHS Compliant
₹1.66

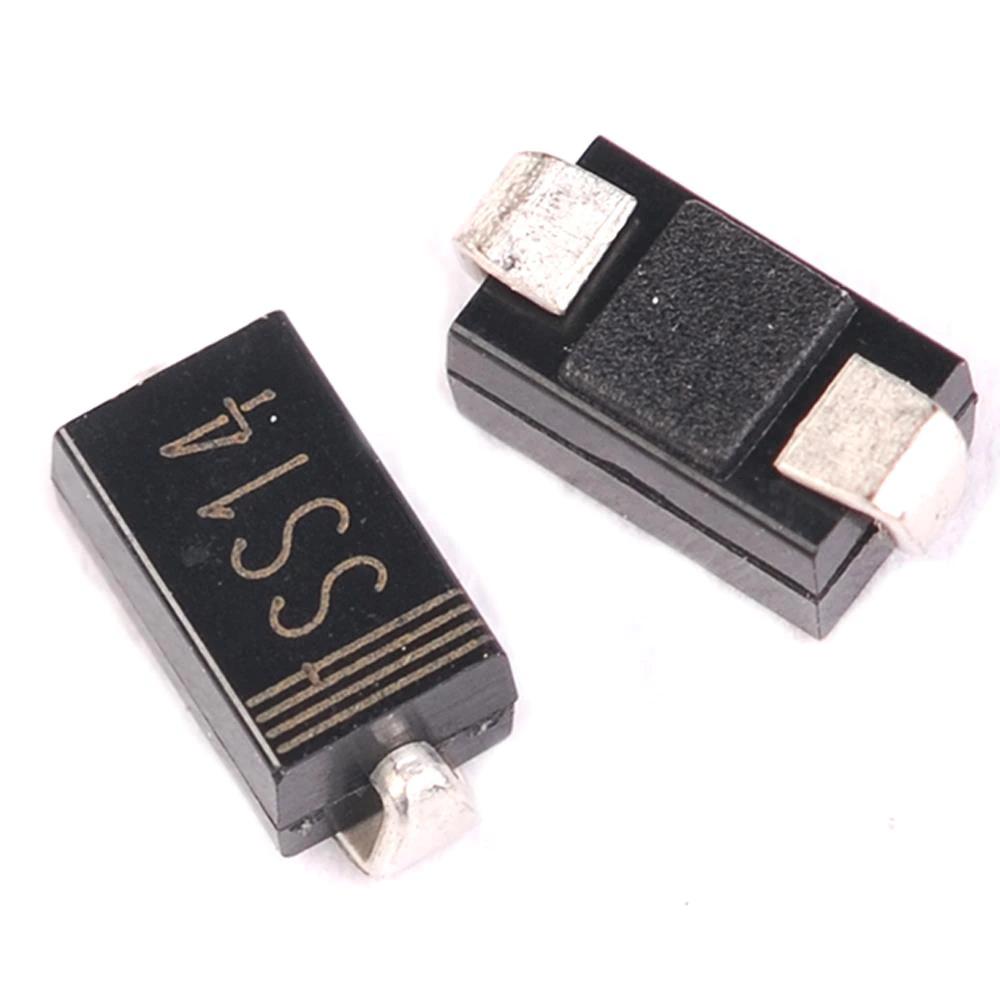

WishlistThe SS14 is a surface-mount Schottky barrier rectifier diode rated for 1A average forward current and 40V reverse voltage. It features low forward voltage drop, fast switching capability, and high efficiency, making it ideal for power supply circuits, reverse polarity protection, and switching regulators.
Housed in a DO-214AC (SMA) package, this diode is designed for compact, high-density PCBs. It is RoHS compliant and suitable for both consumer and industrial electronic systems.
| Parameter | Value |
|---|---|
| Device Type | Schottky Barrier Diode |
| Part Number | SS14 |
| Maximum Repetitive Reverse Voltage (VRRM) | 40V |
| Average Forward Current (IF(AV)) | 1A |
| Forward Voltage Drop (VF) | ~0.5V @ 1A |
| Reverse Current (IR) | <0.5mA @ 40V |
| Package / Case | DO-214AC (SMA) |
| Mounting Type | Surface Mount (SMD) |
| Operating Temperature Range | –55°C to +125°C |
| Recovery Time | Fast |
| RoHS Compliant | Yes |
100nF (0.1μF) capacitance, 50V rated voltage, ±10% tolerance
X7R dielectric for stable temperature performance
0805 [2012 metric] SMD/SMT package, RoHS compliant
Suitable for decoupling, filtering, and general-purpose use
Ideal for consumer electronics, embedded systems, and power supplies
NPN digital transistor with built-in 10kΩ base resistor
100mA collector current, 50V collector-emitter voltage
Gain (hFE): 100 @ IC = 5mA, VCE = 5V
Compact SOT-23 SMD package, ideal for high-density layouts
Suitable for logic-level signal switching and interfacing
RoHS compliant and AEC-Q101 qualified
Resistance: 3.3K Ohms (3300Ω)
Tolerance: ±5% | Power Rating: 1/8W (0.125W)
Package: 0805 (2012 Metric) | Type: Thick Film SMD
Ideal for general-purpose, low-power electronic applications
RoHS compliant, lead-free, and surface-mount compatible
20pF capacitance, 50V rated voltage, ±5% tolerance
0805 [2012 metric] surface-mount package
C0G / NP0 dielectric for high thermal and electrical stability
Ideal for RF, timing, filtering, and precision circuits
RoHS compliant; part of the CC Series MLCCs
